Underslung Overhead Travelling Crane

About Underslung Overhead Travelling Crane

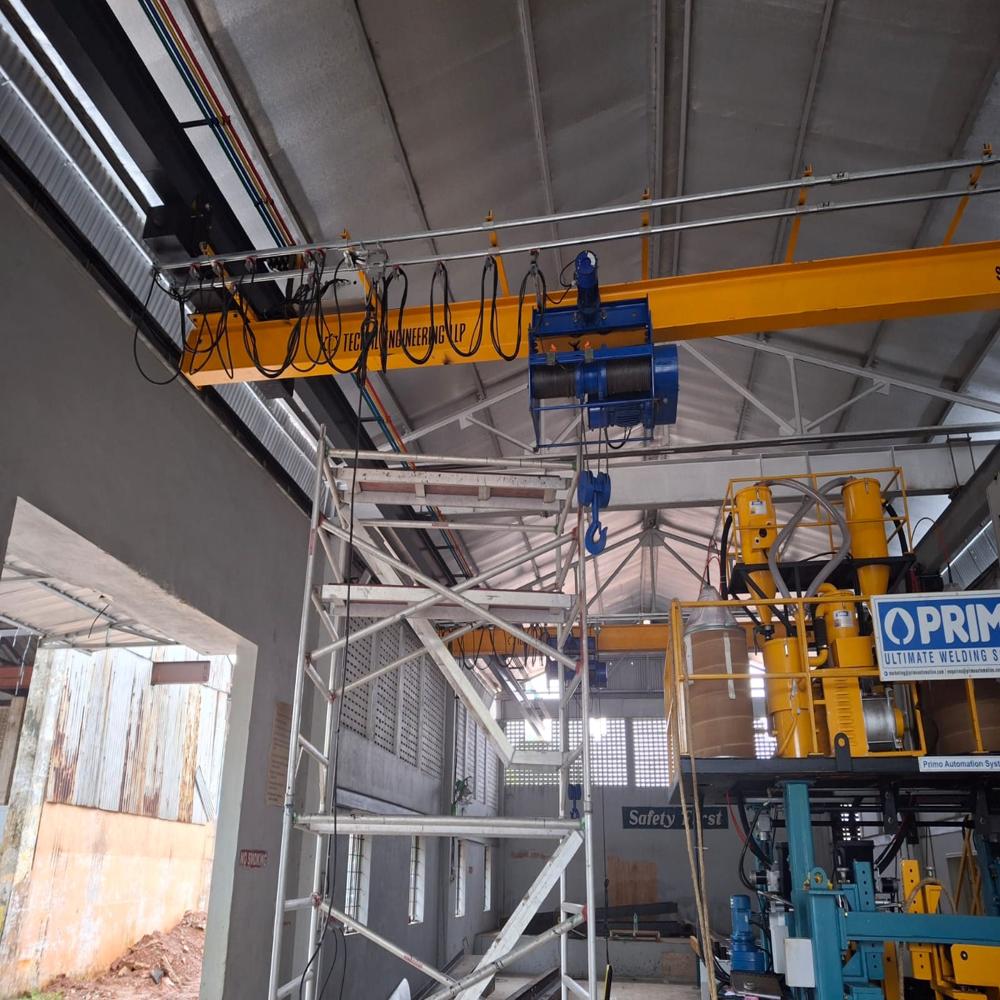

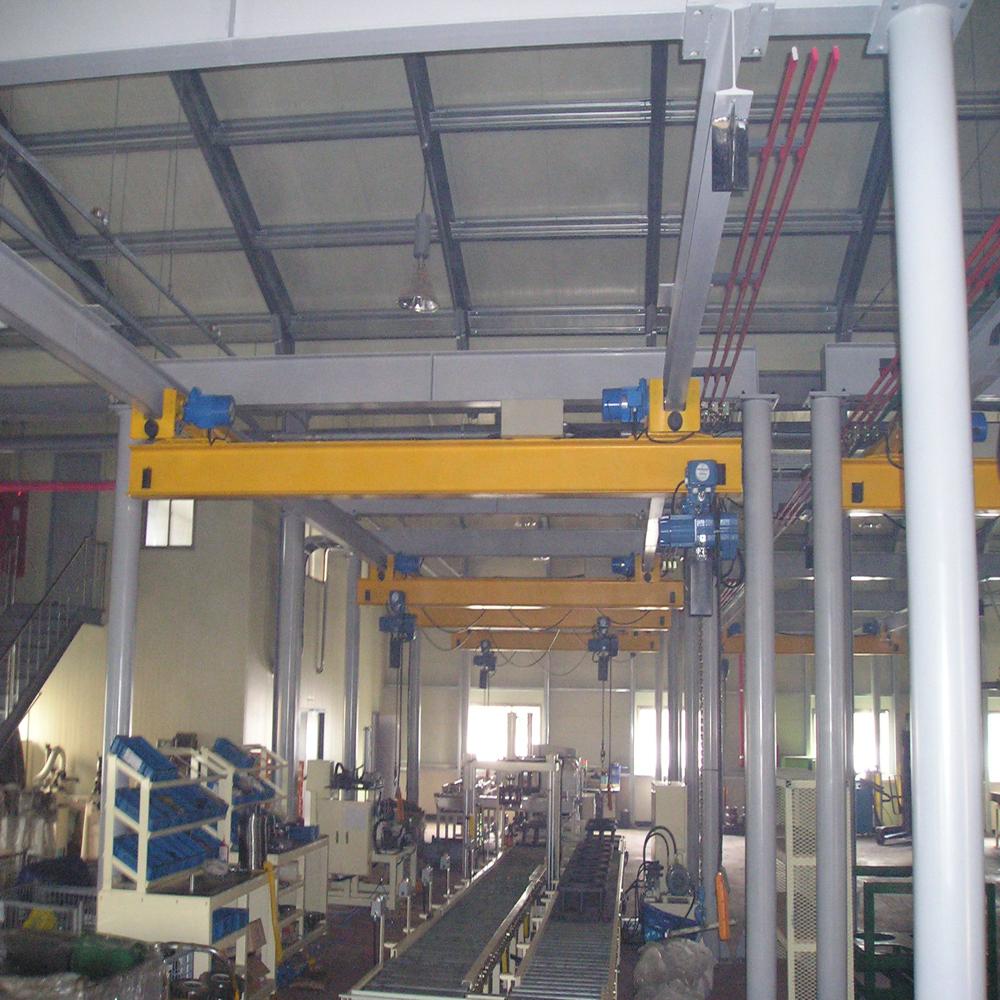

Techfils Underslung Cranes are a robust, space-saving solution ideal for material handling in facilities with limited headroom or complex building layouts. These cranes are designed to run on the bottom flange of runway beams, making them an excellent choice when the ceiling height restricts the use of conventional EOT cranes.

 Technical Features:

• Capacity Range: 250 kg to 10 tonnes

• Span: Up to 20 meters

• Travel Length: Customizable as per site requirements

• Mounting Type: Bottom-flange (underslung) running

• Structure: Modular design with lightweight steel fabrication

• Hoisting Mechanism: Electric Wire Rope or Chain Hoist

• Drive Mechanism: Dual-speed motors with VFD (Optional)

• Control: Pendant / Wireless Remote / Cabin Control

• Power Supply: Festoon cable system or conductor rail

 Advantages:

• Efficient use of available headroom and floor space

• Ideal for workshops with no dedicated gantry support

• Smooth operation with low noise and minimal vibration

• Reduced load on building structures

• Easy integration with existing structural steel

 Applications:

• Automotive component assembly lines

• Warehousing and logistics

• Light to medium fabrication units

• Low-roof industrial sheds

• Engineering workshops

 Techfil Engineering LLP ensures every underslung crane complies with IS 807, IS 3177, and other relevant Indian Standards. Our systems are tailored to match your load, cycle duty, and operational environment for optimal performance and safety.
