Wall Mounted Jib Crane

About Wall Mounted Jib Crane

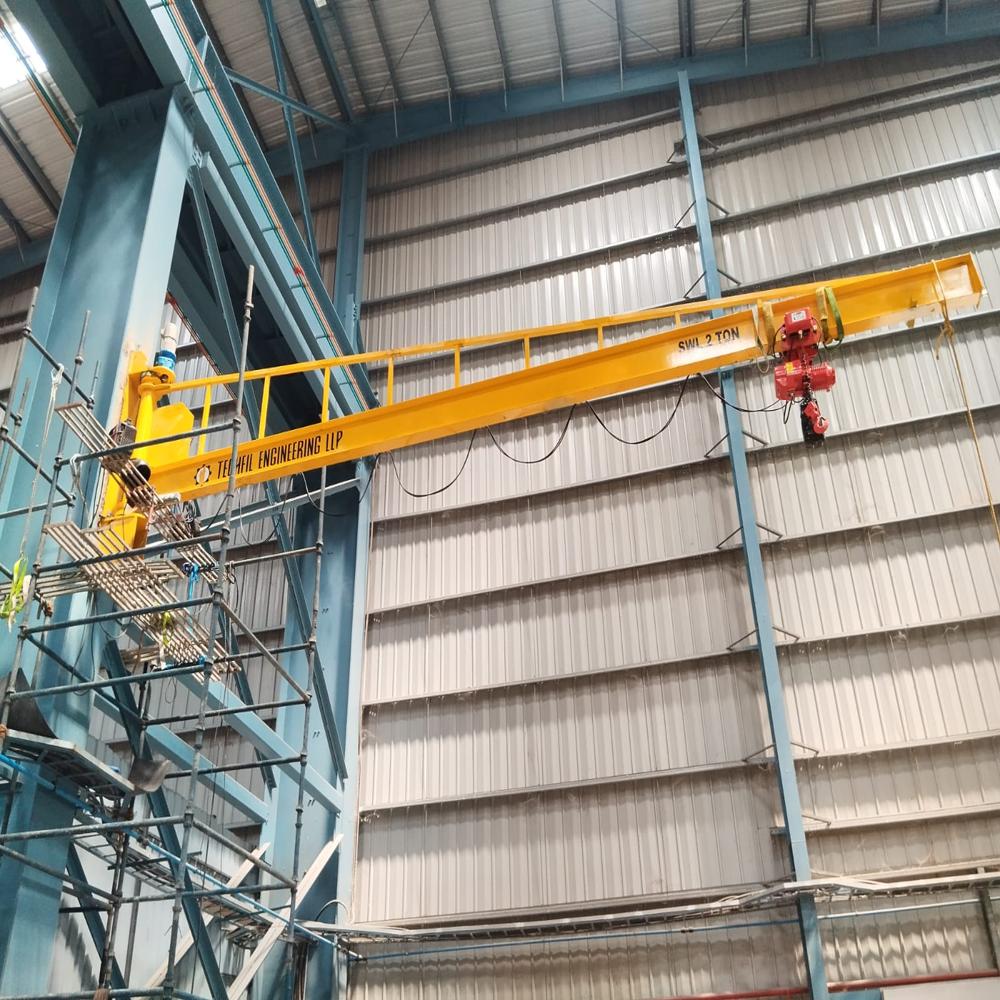

Techfils Wall Mounted Jib Crane is a robust, space-efficient lifting solution designed for workstations and production lines where floor space is limited. It is mounted directly to existing vertical structural elements like columns or building walls, eliminating the need for floor support.

Technical Features:

• Capacity Range: 0.25 Ton to 5 Ton

• Jib Arm Length (Span): Up to 6 meters

• Slewing Angle: 180 to 200, depending on mounting location

• Mounting: Direct wall/column bolted or welded connection

• Construction: Fabricated box section or I-beam arm based on capacity

• Finish: Industrial-grade enamel paint / corrosion-resistant coatings available

• Compliance: Designed as per IS 807, IS 3177, and relevant BIS norms

• Optional: Electric wire rope hoist or chain hoist, push-pull or motorized travel

Advantages:

• Ideal for confined spacesno floor interference

• Quick installation with minimal site modification

• Seamless integration with workstation workflows

• Low maintenance, long-lasting performance

• Heavy-duty bearings for smooth arm rotation

Applications:

• CNC Machine Loading/Unloading

• Automotive Assembly Lines

• Fabrication Shops

• Warehouse Material Handling

• Maintenance Workshops
